Hejian Sanlong Petroleum Machinery Co., Ltd.
3 Years
| Ask Lasest Price | |
| Certification : | ISO9001 |
| Price : | According to product specifications |
| Payment Terms : | T/T |
| Delivery Time : | 5-15work days |
Introduction

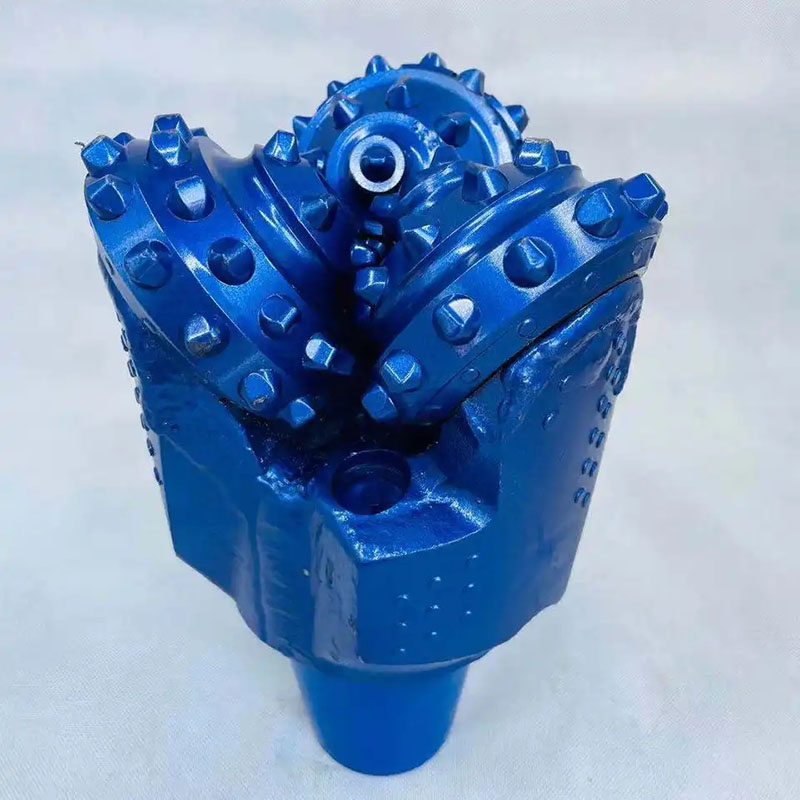

The gauge surface of the cone is equipped with multiple gauge protection inserts for gauge trimmers, and the hard surface at the back of the shirt is equipped with tungsten carbide blades, increasing the gauge holding capacity and bearing life. It has high-precision radial bearings with two thrust surfaces. Ball locking cone.
| item | value |
| Warranty | 1 Year |
| Applicable Industries | Construction works , Energy & Mining |
| Weight (KG) | Standard |
| Type | Cone Bit |
| Machine Type | Drilling Tool |
| Material | Stainless Steel |
| Processing Type | Forging |
| Use | Well Drilling |
| Wob(Kn/mm) | 0.45~1.00 Kn/mm |
| Transport Package | Ply Wooden Box/ Cartons |
Features
(1) Multifunctional drilling tools
(2) Low initial usage cost
(3) More control options
(4) Better in variable and complex rock formations, especially in hard rock formations
(5) Has stronger impact resistance
(6) One of the biggest advantages enjoyed by melamine drill bits with long service life is the length of their existence.
| Bit Size | Connection | Making Up Torque | Weight | Bit Size | Connection | Making Up Torque | Weight | ||
| Inch | mm | Inch | KN.m | Kg | Inch | mm | Inch | KN.m | Kg |
| 3 1/2 | 95.3 | 2 3/8 | 4.1~4.7 | 5 | 11 | 279.4 | 6 5/8 | 38~43.4 | 85 |
| 4 5/8 | 117.5 | 2 7/8 | 6.1~7.5 | 6.5 | 11 5/8 | 295.3 | 89 | ||
| 4 3/4 | 120.7 | 7 | 12 1/8 | 304.8 | 94 | ||||
| 5 1/2 | 139 2/3 | 3 1/2 | 9.5~12.2 | 17 | 12 1/4 | 311.2 | 95 | ||
| 5 7/8 | 142.9 | 18 | 12 15/32 | 315.9 | 97 | ||||
| 6 | 152.4 | 19.5 | 13 1/8 | 333.4 | 120 | ||||
| 6 1/4 | 158.8 | 19.5 | 13 5/8 | 346.1 | 120 | ||||
| 6 1/2 | 165.1 | 19.5 | 13 3/4 | 349.3 | 120 | ||||
| 6 3/4 | 171.5 | 21 | 14 5/8 | 368.3 | 7 5/8 | 46.1~54.2 | 160 | ||
| 7 1/2 | 190.5 | 4 1/2 | 16.3~21.7 | 28 | 14 3/4 | 374.7 | 160 | ||
| 7 7/8 | 200 | 29.5 | 15 | 381 | 185 | ||||
| 8 1/4 | 209.6 | 38 | 15 1/2 | 393.7 | 189 | ||||
| 8 3/8 | 212.7 | 38 | 16 | 406.4 | 205 | ||||
| 8 1/2 | 215.9 | 38 | 17 1/2 | 444.5 | 255 | ||||
| 8 3/4 | 222.3 | 40 | 20 | 508.0 | 443 | ||||
| 9 1/2 | 241.3 | 6 5/8 | 38~43.4 | 57.5 | 22 | 558.8 | 580 | ||
| 9 7/8 | 250.8 | 60 | 24 | 609.6 | 650 | ||||
| 10 5/8 | 269.9 | 74 | 26 | 660.4 | 810 | ||||
Used in
Tri-cone bit is a decelerating bit. It is based on the fact that
the speed of the cone is less than the speed of the bit. It is
suitable for sidetracking of old wells and deepening of small
boreholes under high speed and high drilling pressure.
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
5. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
6. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
7. Competitive price:
A: Our factory can supply you the lowest price due to direct sale to customers without distributor!
|
|
